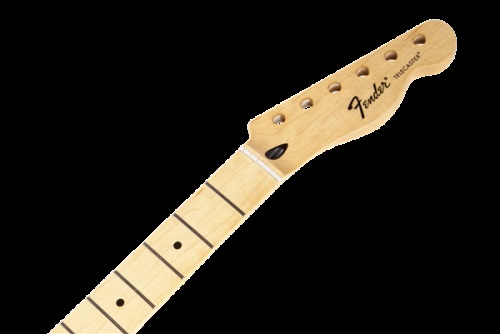

Fender Standard Tele Neck, 21 Medium Jumbo - Maple

Genuine Fender Telecaster guitar maple neck features a comfortable "modern C" profile and 9.5"-radius maple fingerboard with 21 medium jumbo frets. Also includes standard truss rod and pre-slotted synthetic bone nut. Tinted satin urethane finish on back for smooth feel, with gloss-finish fingerboard and headstock face. Crafted at Fender’s Ensenada, Mexico, manufacturing facility.

This replacement neck is for a Fender or Squier by Fender guitar.

Specifications and Features:

• Fingerboard: Maple
• Number of Frets: 21
• Fret Size: Medium Jumbo
• Neck Shape: Modern "C"
• Neck Material: Maple
• Neck Finish: Satin Urethane on Back of Neck, Gloss on Face of Headstock
• Fingerboard Radius: 9.5" (241 mm)
• Scale Length: 25.5" (648 mm)
• Nut Material: Synthetic Bone (Melamine)

• Nut Width: 1.650" (42 mm)
• Position Inlays: White Dot

• 3/16" Truss Rod Adjustment Nut (At Headstock)

• 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
• Each neck is serialized and stamped during quality inspection
• Walnut "skunk" stripe on back of neck

• Fender Logo on Headstock

Each nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

Peg Hole Diameter - .397" (10.08 mm)

Headstock Thickness - .540" (13.71 mm)

Thickness at the 1st Fret - .820" (20.82 mm)

Thickness at the 12th Fret - .870" (22.09 mm)

Recommended Tuning Machines:

Standard Series Guitar Tuning Machines (p/n 0037429000)

Locking Tuning Machines (p/n 0990818100)

American Standard Tuning Machines (p/n 0990820100)
