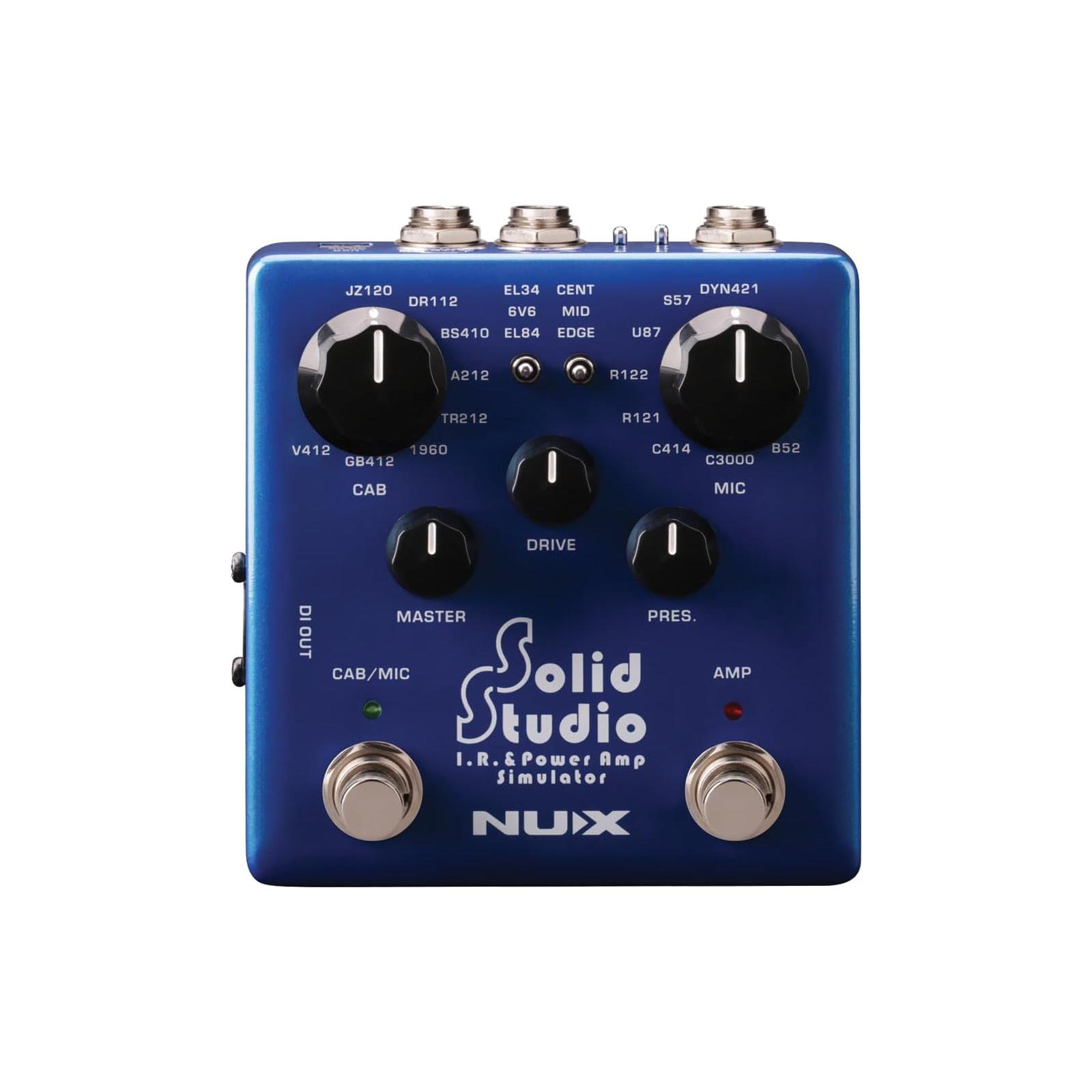

Solid Studio comes with 8 speaker cabinet simulations. All the cabinet models inside the Solid Studio sound and feel as great as their original counterparts.

And there are 8 microphone models you can combine with any cabinets. Also, you can adjust microphone position for fine tuning.

Solid Studio Power Amp Simulation offers three power tube models that deliver corresponding tonal characteristics: EL84, LE34 and 6V6.

*All the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

What's Inside?

NUX Solid Studio has a 6.35mm mono input with an input signal level toggle switch (-10dB / +4dB) for fitting various instruments. And it has 3 outputs: simulation dedicated (TRS) STEREO OUTPUT and DI OUT, and a bypassed "THRU" output.

Input/Outputs

Solid Studio offers a variety of connection solutions to give you correct guitar tones with or without a real speaker cabinet.

- You can place the Solid Studio at the end of your pedal board, and you can send the simulated sound to the mixer while you can send your original signal to the amp. It's an alternate option for amp / cabinet mic-ing on stage.

- Solid Studio is good for sitting between your pedals and audio interface for silent direct recording. Let the Solid Studio handle the speaker cabinet and microphone part.

- By placing the Solid Studio between the amp and the cabinet, while still using your real cabinet for stage monitoring, you can split a DI signal with cabinet simulation to the mixer from Solid studio. The Solid Studio DOES NOT provide NO LOAD to the amplifier, therefore, a real cabinet or a loadbox MUST be connected to the THRU jack of the Solid Studio, or there is risk of damaging the amplifier.

- The amplifier's speaker output must be connected to the Solid Studio's input by a SPEAKER CABLE

- The Solid Studio's input mode must be switched to +4 dB

- The Solid Studio's THRU output must be connected to the speaker cabinet's input by a SPEAKER CABLE

- The Solid Studio's output mode must be selected as SPK (SPEAKER)

Gig Saver

Silent Recording

Advanced Connection

Connection Tips

You can easily emulate the sound of any guitar cabinet by loading different IR (Impulse response) files to NUX Solid Studio.

IR file support

The Solid Studio's IR resolution is 2048 samples and 46ms, which is higher than the common quality standard that most of IR loaders are using today: 1024 samples and 20ms capturing length. Some well-known profiler devices offer 2048 samples / 40ms length.

The highest resolution quality limit of the IR is 50ms, it is the REAL sound.Considering all the process on the signal from your guitar to your ear, Solid Studio delivers the signal faster than the blink of an eye with the greatest result. Thanks to Solid Studio's high-quality processor and perfect algorithm, the signal latency from input to output is less than 1ms.

What makes the Solid Studio standout? It offers 46ms length which means it can perfectly read all the frequencies. Comparing the length, 20ms is already enough to capture a sound profile with an efficient result but it's not enough to catch the lower frequencies. That's why devices with high-quality usually provide 40ms length - it means higher resolution and better quality.

Many of the IR loaders' signal latency is around 2ms, and each additional digital pedal in the signal chain also increases the latency. For example, the fastest multi-effect pedal needs 2ms to deliver the sound, if you use an IR loader together with this multi-effect pedal, the total latency will be 4ms and a guitar player can ~barely~ feel that. If it's more than 5ms it's obviously slow and it's not able to play.

(If you are interested to read more advanced details click here)

Technically, the Most Realistic IR Loader: Solid Studio

You can capture any speaker's profile easily with Solid Studio. Create your own IR file and save it.

First, make all the connections (you can see the picture below):

- Adjust the microphone position and connect to the Mic Preamp

- Mic Preamp Output to Solid Studio Input

- Solid Studio Output to Power Amp in / Return

Now follow these steps:

- Push and hold both footswitches on Solid Studio and plug in the power cable. Solid Studio will start running in IR capturing mode

- Select the save position on Solid Studio, you can dial up any preset you want. Choose a speaker cabinet, mic position and a microphone (and please note it). This will be your preset recall position as long as you keep the file here. 8 Speaker Cabinets x 3 Microphone positions x 8 Microphones = 192 dial up positions

- Press CAB/MIC footswitch ~ and it will capture the profile. Usually it takes couple of seconds, just wait until the LED's stops blinking.

Your very own Impulse Response file is ready to rock!

IR Capture

You can get the real experience of Solid Studio with NUX PA-50 Personal Monitor, the second channel of the monitor is a Full Range Flat Response input. When you connect the Solid Studio thru that input, you can get the characteristic sound of the selected speaker profile from built-in or loaded IR file. NUX PA-50 can reflect any of your favorite speaker cabinet sound. To learn more about the amplifier click here.
