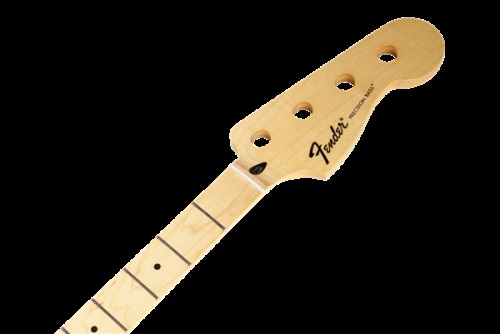

Fender P Bass Neck - Maple

Genuine Fender Precision Bass guitar maple neck features a comfortable "modern C" profile and 9.5"-radius rosewood or maple fingerboard with 20 medium jumbo frets. Also includes standard truss rod and pre-slotted synthetic bone nut. Tinted satin urethane finish on back for smooth feel, with gloss finish on maple fingerboard and headstock face. Crafted at Fender’s Ensenada, Mexico, manufacturing facility.

This replacement neck is for a Fender or Squier by Fender bass.

Specifications and Features:

• Fingerboard: Maple
• Number of Frets: 20
• Fret Size: Medium Jumbo
• Neck Shape: Modern "C"
• Neck Material: Maple
• Neck Finish: Satin Urethane on Back of Neck, Gloss on Face of Headstock
• Fingerboard Radius: 9.5" (241 mm)
• Scale Length: 34" (864 mm)
• Nut Material: Synthetic Bone (Melamine)

• Nut Width: 1.625" (41.3 mm)
• Position Inlays: White Dot

• 3/16" Truss Rod Adjustment Nut (at Headstock)

• 4 Pre-Drilled Tuning Machine Holes- Vintage-Style Mount

• Each neck is serialized and stamped during quality inspection
• Fender Logo Decal

Each nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

Peg Hole Diameter - .734" (18.64 mm)

Headstock Thickness - .540" (13.71 mm)

Thickness at the 1st Fret - .800" (20.32 mm)

Thickness at the 12th Fret - .900" (22.86 mm)

Recommended Tuning Machines:

Standard tuning machines (p/n 0036400000)

Standard Bushings (Set of 4) (p/n 0051532049)

Tuning Machine Mounting Screws (p/n 0011357049)
